These are some notes for the Coursera Course on Neural Networks and Deep Learning, which is a part of the Deep Learning Specialization. This post is a summary of the course contents that I learned from Week 4.

These notes are far from original. All credits go to the course instructor Andrew Ng and his team.

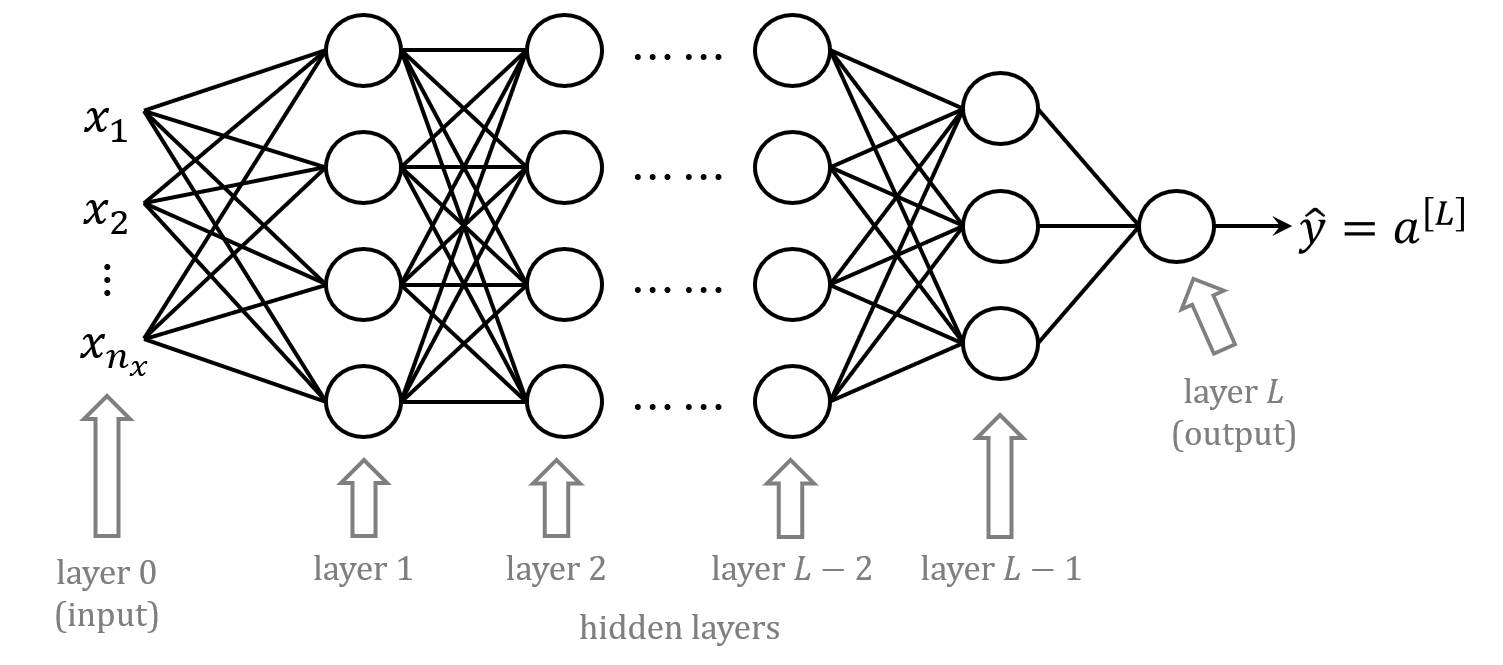

deep \(L\)-layer neural network

notations

  • \(n^{[l]}\): number of neurons in layer \(l\)
  • \(a^{[l]} = g^{[l]}(z^{[l]})\): activations in layer \(l\)
  • \(W^{[l]}, b^{[l]}\): weights and biases for \(z^{[l]}\)
  • \(l=0\): \(a^{[0]} = X\) (input).
  • \(l=L\): \(a^{[L]} = \hat{y}\) (predicted output).

forward propagation

at each layer \(l\) (\(l=1,2,\cdots,L\)), we want to compute an output \(a^{[l]}\) from an input \(a^{[l-1]}\):

\[\begin{align*} z^{[l]} & = W^{[l]} a^{[l-1]} + b^{[l]} \\ a^{[l]} & = g^{[l]}(z^{[l]}) \end{align*}\]

more explicitly, this is:

\[\begin{align*} \begin{bmatrix} z_1^{[l]} \\ z_2^{[l]} \\ \vdots \\ z_{n^{[l]}}^{[l]} \end{bmatrix} & = \begin{bmatrix} \cdots & w_1^{[l]} & \cdots \\ \cdots & w_2^{[l]} & \cdots \\ & \vdots & \\ \cdots & w_{n^{[l]}}^{[l]} & \cdots\end{bmatrix} \begin{bmatrix} a_1^{[l-1]} \\ a_2^{[l-1]} \\ \vdots \\ a_{n^{[l-1]}}^{[l-1]} \end{bmatrix} + \begin{bmatrix} b_1^{[l]} \\ b_2^{[l]} \\ \vdots \\ b_{n^{[l]}}^{[l]} \end{bmatrix} \\ \begin{bmatrix} a_1^{[l]} \\ a_2^{[l]} \\ \vdots \\ a_{n^{[l]}}^{[l]} \end{bmatrix} & = \begin{bmatrix} g^{[l]}(z_1^{[l]}) \\ g^{[l]}(z_2^{[l]}) \\ \vdots \\ g^{[l]}(z_{n^{[l]}}^{[l]})\end{bmatrix} \end{align*}\]

where the dimensions of the vectors and matrices are:

  • \(z^{[l]}\), \(a^{[l]}\): \((n^{[l]} \times 1)\)
  • weight matrix \(W^{[l]}\): \((n^{[l]} \times n^{[l-1]})\)
  • bias \(b^{[l]}\): \((n^{[l]} \times 1)\)
  • \(a^{[l-1]}\): \((n^{[l-1]} \times 1)\)

backward propagation

at layer \(l\) (\(l=L, L-1, \cdots, 2, 1\)), we want to compute the derivatives \(da^{[l-1]}, dW^{[l]}, db^{[l]}\) from the derivative values of \(da^{[l]}\)

derivative for neurons

for \(j^\text{th}\) neuron in layer \(l\):

\[\begin{align*} \frac{\partial J}{\partial z_j^{[l]}} &= \frac{\partial J}{\partial a_j^{[l]}} \frac{\partial a_j^{[l]}}{\partial z_j^{[l]}} = \frac{\partial J}{\partial a_j^{[l]}} \frac{\partial g^{[l]}(z_j^{[l]})}{\partial z_j^{[l]}} = \frac{\partial J}{\partial a_j^{[l]}} g^{[l]'}(z_j^{[l]}) \\ \Rightarrow \frac{\partial J}{\partial z^{[l]}} &= \frac{\partial J}{\partial a^{[l]}} g^{[l]'} (z^{[l]}) \end{align*}\]

this can be written as \(dz^{[l]} = da^{[l]} * g^{[l]'}(z^{[l]})\) where

  • \(dz^{[l]}, da^{[l]}, g^{[l]'}(z^{[l]})\) are all of the shape \((n^{[l]} \times 1)\)
  • ”\(*\)” means element-wise multiplication

derivative for weights

for \(k^\text{th}\) element of the weights (\(k=1,2,\cdots, n^{[l-1]}\)) for \(j^\text{th}\) neuron (\(j=1,2,\cdots, n^{[l]}\)) in layer \(l\):

\[\begin{align*} \frac{\partial J}{\partial w_{jk}^{[l]}} &= \frac{\partial J}{\partial z_j^{[l]}} \frac{\partial z_j^{[l]}}{\partial w_{jk}^{[l]}} = \frac{\partial J}{\partial z_j^{[l]}} \frac{\partial}{\partial w_{jk}^{[l]}}\left( \sum_{k=1}^{n^{[l-1]}} w_{jk}^{[l]} a_{k}^{[l-1]} + b_{j}^{[l]}\right) = \frac{\partial J}{\partial z_j^{[l]}} a_{k}^{[l-1]} \\ \Rightarrow \frac{\partial J}{\partial W^{[l]}} &= \frac{\partial J}{\partial z^{[l]}} {a^{[l-1]}}^T \end{align*}\]

this can be written as \(dW^{[l]} = dz^{[l]} {a^{[l-1]}}^T\) where

  • \(dW^{[l]}\) has dimensions \((n^{[l]} \times n^{[l-1]})\)
  • \(dz^{[l]}\) has dimensions \((n^{[l]} \times 1)\)
  • \({a^{[l-1]}}^T\) has dimensions \((n^{[l-1]} \times 1)^T\)

derivative for biases

for \(j^\text{th}\) neuron in layer \(l\):

\[\begin{align*} \frac{\partial J}{\partial b_{j}^{[l]}} &= \frac{\partial J}{\partial z_j^{[l]}} \frac{\partial z_j^{[l]}}{\partial b_{j}^{[l]}} = \frac{\partial J}{\partial z_j^{[l]}} \frac{\partial}{\partial b_{j}^{[l]}}\left( \sum_{k=1}^{n^{[l-1]}} w_{jk}^{[l]} a_{k}^{[l-1]} + b_{j}^{[l]}\right) = \frac{\partial J}{\partial z_j^{[l]}} \\ \Rightarrow \frac{\partial J}{\partial b^{[l]}} &= \frac{\partial J}{\partial z^{[l]}} \end{align*}\]

this can be written as \(db^{[l]} = dz^{[l]}\) where

  • both \(db^{[l]}\) and \(dz^{[l]}\) are all of the shape \((n^{[l]} \times 1)\)

derivative for activations in the previous layer

for \(k^\text{th}\) neuron in layer \(l-1\):

\[\begin{align*} \frac{\partial J}{\partial a_{k}^{[l-1]}} &= \sum_{j=1}^{n^{[l]}} \frac{\partial J}{\partial z_j^{[l]}} \frac{\partial z_j^{[l]}}{\partial a_{k}^{[l-1]}} \\ &= \sum_{j=1}^{n^{[l]}} \frac{\partial J}{\partial z_j^{[l]}} \frac{\partial}{\partial a_{k}^{[l-1]}}\left( \sum_{k'=1}^{n^{[l-1]}} w_{jk'}^{[l]} a_{k'}^{[l-1]} + b_{j}^{[l]}\right) \\ & = \frac{\partial J}{\partial z_j^{[l]}} w_{jk}^{[l]} \\ \Rightarrow \frac{\partial J}{\partial a^{[l-1]}} &= {W^{[l]}}^T \frac{\partial J}{\partial z^{[l]}} \end{align*}\]

this can be written as \(da^{[l-1]} = {W^{[l]}}^T dz^{[l]}\)

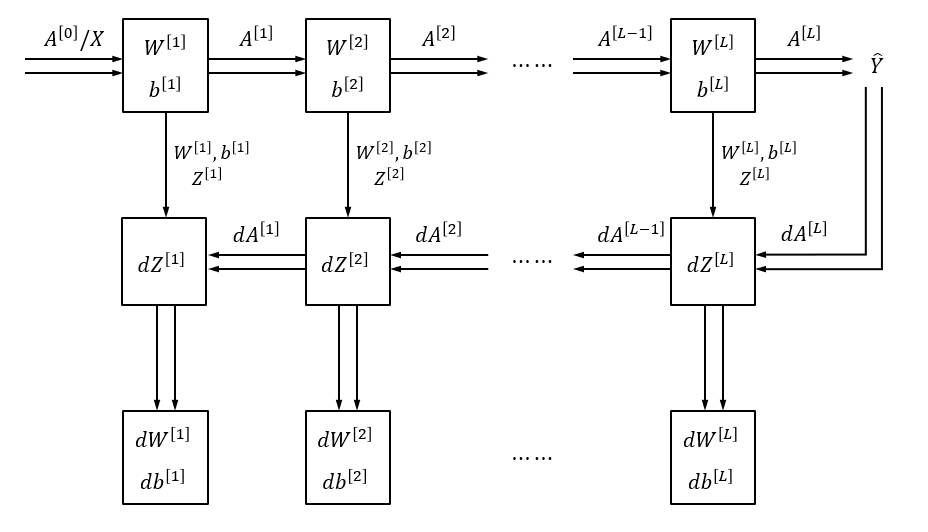

backward propagation functions wrap-up

for each layer \(l=L, L-1, \cdots, 2, 1\):

\[\begin{align*} dz^{[l]} &= da^{[l]} * g^{[l]'}(z^{[l]}) \\ dW^{[l]} &= dz^{[l]} {a^{[l-1]}}^T \\ db^{[l]} &= dz^{[l]} \\ da^{[l-1]} &= {W^{[l]}}^T dz^{[l]} \end{align*}\]

vectorisation with \(m\) training examples

with vectorisation, we can work with the entire dataset as a whole

we can introduce

\[\begin{align*} A^{[l]} & = \begin{bmatrix} \vdots & \vdots & & \vdots \\ a^{[l](1)} & a^{[l](2)} & \cdots & a^{[l](m)} \\ \vdots & \vdots & & \vdots \end{bmatrix}_{n^{[l]} \times m} \\ W^{[l]} &= \begin{bmatrix} \cdots & w_1^{[l]} & \cdots \\ \cdots & w_2^{[l]} & \cdots \\ & \vdots & \\ \cdots & w_{n^{[l]}}^{[l]} & \cdots\end{bmatrix}_{n^{[l]} \times n^{[l-1]}} \\ b^{[l]} &= \begin{bmatrix} b_1^{[l]} \\ b_2^{[l]} \\ \vdots \\ b_{n^{[l]}}^{[l]} \end{bmatrix}_{n^{[l]} \times 1} \end{align*}\]

where

  • \(A^{[0]} = X = \begin{bmatrix} x^{(1)} & x^{(2)} & \cdots & x^{(m)} \end{bmatrix}\) is the input data
  • \(A^{[L]} = \hat{Y} = \begin{bmatrix} \hat{y}^{(1)} & \hat{y}^{(2)} & \cdots & \hat{y}^{(m)}\end{bmatrix}\) is the predicted output
  • \(Y = \begin{bmatrix} y^{(1)} & y^{(2)} & \cdots & y^{(m)}\end{bmatrix}\) is the desired output

then for forward propagation at layer \(l\):

\[\begin{align*} Z^{[l]} &= W^{[l]} A^{[l-1]} + b^{[l]} \\ A^{[l]} &= g^{[l]} (Z^{[l]}) \end{align*}\]

for backward propagation at layer \(l\):

\[\begin{align*} dZ^{[l]} &= dA^{[l]} * g^{[l]'}(Z^{[l]}) \\ dW^{[l]} &= dZ^{[l]} A^{[l-1]T} \\ db^{[l]} &= \sum_{i=1}^m dZ^{[l](i)} \\ dA^{[l-1]} &= {W^{[l]}}^T dZ^{[l]} \end{align*}\]

typical architecture of a deep neural network

in this course, we use:

  • ReLU/tanh as activation functions for hidden layers
  • sigmoid as activation function for the output layer
  • cross-entropy loss as the cost function

in this case, for the output layer, we have:

\[\begin{align*} dZ^{[L]} &= dA^{[L]} * g^{[L]'}(Z^{[L]}) \\ &= -\frac{1}{m} \frac{\partial}{\partial A^{[L]}} \sum_{i=1}^m \left[ Y^{(i)} \log A^{(i)} + (1-Y^{(i)}) \log(1-A^{(i)})\right] * \sigma'(Z^{[l]}) \\ &= -\frac{1}{m} \left[ \frac{Y}{A^{[L]}} - \frac{1-Y}{1-A^{[L]}}\right] * A^{[L]} * (1-A^{[L]}) \\ \Rightarrow dZ^{[L]} &= \frac{1}{m} \left( A^{[L]} - Y \right) \end{align*}\]

this gives the starting point for backward propagation for the entire network
